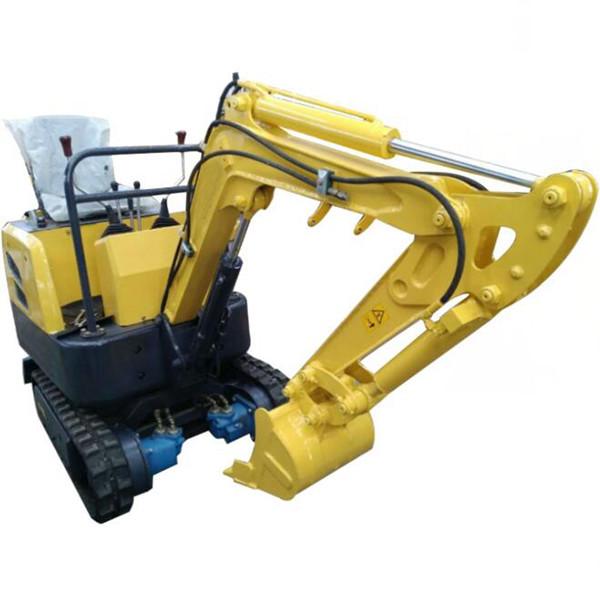

Mini Digger Road Builder Excavator 0.8 Ton Small Mini Excavators With Hydraulic Hammer

Name: Mini Digger Road Builder Excavator 08 Ton Small Mini Excavators With Hydraulic Hammer
Brand: Bilon
Price: 1 USD

China Mini Digger Road Builder Excavator 0.8 Ton Small Mini Excavators With Hydraulic Hammer factory

Brand Name : Bilon

Certification : CE

Place of Origin : China

MOQ : 1-5 pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 sets for one month

Delivery Time : 30 days

Packaging Details : Iron frame or customised wooden package for excavator

Moving Type : Crawler Excavator

Operating Weight : 2200 kg

Bucket capacity : 0.08m3

Maximum Digging Height : 3800 mm

Maximum Digging Depth : 2150 mm

Rated Speed : 0-2.5 Km/h

Contact Now

2017 New Type Mini Digger 0.8 Ton Small Mini Excavators With Hydraulic Hammer

Mini Hydraulic Crawler exccavator has the feature of higher efficiency,lower fuel consumption and operation comfort, etc., with wide applications in various narrow environments such as forest, farm & indoors.

It is with unique design, compact and flexible. Suitable to be used in small area, small project, low oil consumption, connenient to use. With rubber tracks, can travel on any roads. here are some main specification.

Model	8022	8018	8008
Operating Weight (kg):	2200	1780	800
Bucket Capacity(square):	0.08	0.06	0.025
Bucket Width(mm):	490	450	350
Boom Length(mm):	2000	1823	1350
Arm Length(mm):	1000	1130	700
Swing speed(rpm):	10	10	10
Travel Speed(Km/h):	0-2.5	0-2.2	0-2.6
Grade Ability(%):	25°	25°	20
Ground Pressure(Kpa):	34	34	25
Bucket digging force(kN):	18.2	15.2	9.6
Engine model:	Changchai ZN390Q	Laidong KM385B	ChangchaiEV80
Rated Power (Kw/rpm):	22/2200	18.1/2200	12/3000
Max.Torque (N.m/rpm):	≥75	≥69	43
Max.digging radius(mm):	4023	3920	2612
Max.digging depth (mm):	2150	2140	1328
