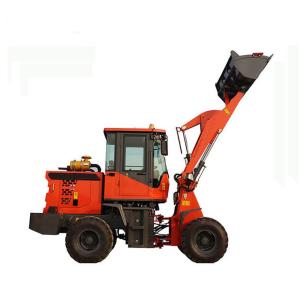

1.2 Ton Front End Mini Wheel Loader Construction Machine Hydraulic Operation

Name: 12 Ton Front End Mini Wheel Loader Construction Machine Hydraulic Operation
Brand: Bilon
Price: 1 USD

Brand Name : Bilon

Model Number : 920

Certification : CE

Place of Origin : China

MOQ : 1-10pcs

Payment Terms : L/C, T/T

Supply Ability : 3000 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Nude

Rated Load : 1200kg

Gear box : 265

bucket capacity : 0.75m3

Type : Mini Loader

rated power : 42kw

Engine : YN27 turbo engine

Contact Now

New Construction Machine 1.2 ton China Front End Mini Wheel Loader

1.Using direct injection diesel engine as power, with easy startup and low oil consumption

2.Using 50 drive axle, with strong ability to overcome obstacle

3.Using the central articulated frame and load-sensing hydraulic steering gear, with small turning radius and flexible turning, which applies to the operation in narrow space

4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality

5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.

6.hydraulic transmission , can make it much easier for operation

7.Using four -wheel -drive,low wide-based off-road tires

8 drum -type shoe brake, spring applied and air released

Rated load		1200kg
Overall weight		3400kg
Rated bucket capacity		0.75m3
Maximum tractive force		36kn
Maximum breakout force		≥37kn
Maximum grade ability		35°
Maximum dump height		3200mm
Overall dimension (LWH)		540018002650mm
Maximum dump reach		900mm
Minimum turning radius		5400mm

Engine
Model		YN27
Rated power		42kw
Maixmum torque		195N.m
Min fuel-consume ratio		≤238g/kw.h
No. of cylinder-bore/stroke		4-95*105mm
Type		In-line,arrangement,water cooling, four-strok
